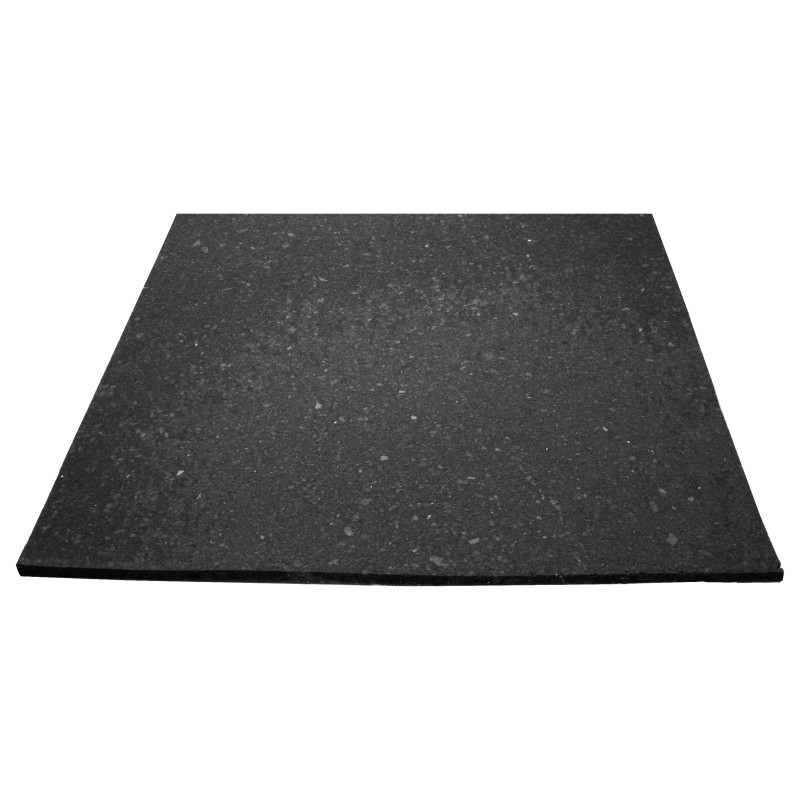

Macsound sound-absorbing vibration-proof soundproofing material.
Consists of pieces of acoustic polyurethane foam, rubber, reinforcement fabric.
It is a uniformly porous elastic material with an open small pore, due to which sound energy is absorbed and converted into thermal energy.
Depending on the placement and design, it is used both to absorb airborne, acoustic noise and to significantly reduce impact and structural noise.
Suitable for absorption and isolation of low, medium and high frequencies.
Eliminates the effect of rattling, "box resonance".
Prevents the formation of sound bridges.
Very effective when used in wall partitions.
It is also used for wall cladding in rooms where there is noisy electro-mechanical equipment - elevators, hoods, machine tools.
It is used as insulating gaskets, bumpers, as well as to protect the transported cargo from damage, for example, when transporting glass, antiques.
When used as a sound absorbing material, Macsound is effective in absorbing the entire audible and perceptible sound spectrum.
More efficient than acoustic mineral wool due to its density from 60 to 300 kilograms per cubic meter, it saves space, does not crumble.
Suitable for interior work.
Also used for wall soundproofing, ceiling soundproofing and floor soundproofing.
Absorbs impact noise from neighbors.
Easy to install and cut, unlike cotton wool, it does not emit dangerous dust.
Serves as the main vibration isolator in floating floor systems.
With the help of Macsound, a dry floating floor system is made.
Eliminates the sound of steps and the effect of "cold floor".
When laid under a cement screed, it reduces the level of impact noise to 35 decibels.
It is used in the manufacture of a podium for drum kits.
Good thermal insulation in addition to sound insulation.
Eco-friendly.
Macsound is also used to isolate unwanted vibration and rattle from machine tools, simulators, treadmills, as well as soundproofing car hulls, yachts, ships, engine rooms, etc.
WALL SOUND PROOFING OPTION USING MAXOUND SOUND PROOFING MATERIAL
Macsound 20mm or 40mm thick, which is placed between two sheets of drywall.
For the measurement, sheets of Macsound Prof soundproofing material 20 mm thick and 40 mm thick were alternately used.
Characteristics of the soundproof structure| Macsound prof sheet thickness, mm | Sound insulation index R w , dB | Total structure thickness, mm |
|---|
| twenty | 39 | 85 |
| 40 | 43 | 105 |
- Brickwork
- Drywall sheet 12.5 mm
- EcoSound MacSound prof. 40 mm
- Drywall sheet 12.5 mm
You can find other options for using Macsound Acoustic Boards in combination with plasterboard partitions by clicking on the link to the article
Product Features:
- Acoustic foam can change color when exposed to ultraviolet rays.
- Delta E acoustic foam color error ≦ 5 in CIELAB color space. The color of the panels may differ slightly when joined.
- The color hue of acoustic foam from different shipments may sometimes vary slightly, without affecting its sound absorbing properties
- Up to 1% of the acoustic foam surface is covered in pores, which are significantly larger than standard pores.
- You can choose to ship the acoustic foam in compressed form, which will reduce the cost of its delivery by about 2/3, however, in order for the foam to return to its original shape, it will take at least 48 hours ( usually) and up to 10 days.
- The safety of using acoustic foam has been confirmed by the conclusion of the sanitary and epidemiological examination.
- Number of holes up to 1%;
- Custom cut material cannot be exchanged or returned;
Height error allowed: up to 5 mm;
Width and depth tolerance: up to 15 mm;
