Anti-vibration mounts-soundproofing walls Vibrofix Connect

Vibrofix Connect fasteners are used for

installation of soundproof partitions on non-

hanging frames of great height in rooms,

which are subject to higher requirements

noise protection:

‣ recording studios

‣ TV pavilions

‣ multiplex cinemas

‣ meeting rooms

‣ conference rooms

‣ ventilation chambers

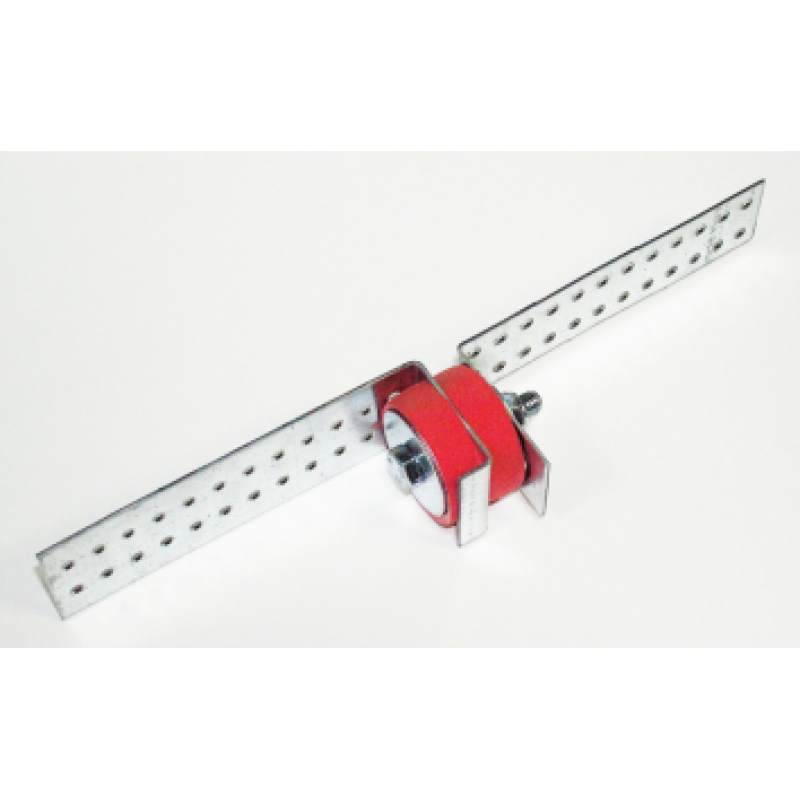

Vibrofix Connect mounts are made of durable

1.5 mm galvanized steel. In quality-

elastic element, a unique

Sylomer® material (Getzner Werkstoffe, Austria),

specially designed to solve problems in

vibration protection areas.

Fastening is completed with L-shaped bracket -

rated from galvanized steel 2 mm with

the possibility of adjusting the contact plane.

‣ patented fastening system (patent

No. 47822 UA, patent No. 95693 RU)

‣ pre-compression of the elastic element -

145 N

‣ effective acoustic decoupling from building

body structures

‣ increased sound insulation in the low-frequency

range

‣ compatible with the KNAUF profile system

Height error allowed: up to 5 mm;

Width and depth tolerance: up to 15 mm;

Our company is ready to offer professional and fast installation of equipment with a guarantee for the services rendered.

Additional discount available for bulk orders. To clarify the discount rate, please refer tomanager
