Anti-vibration wall mounts Vibrofix CD

Vibrofix CD fasteners are used for mounting

highly effective sound-proof framework -

cladding in rooms to which present-

increased requirements for noise protection

(especially at low frequencies):

‣ recording studios

‣ cinemas

‣ meeting rooms

‣ ventilation chambers

‣ transformer substations

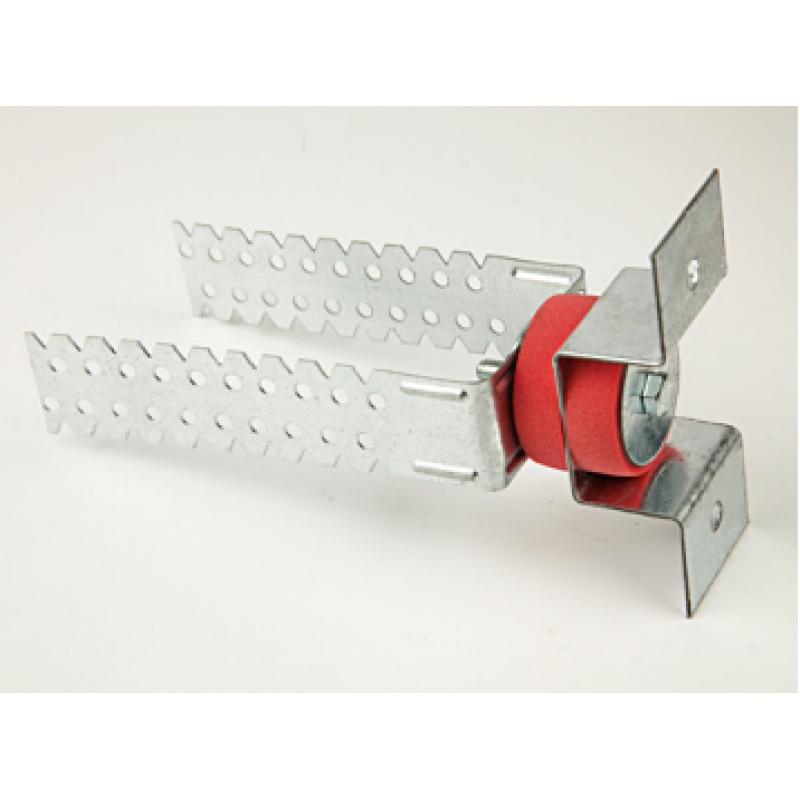

Vibrofix CD mounts are made of durable

galvanized steel 1.5 mm . As

elastic element uses a unique material

real Sylomer® (Getzner Werkstoffe, Austria), special

ally designed to solve problems in the field of

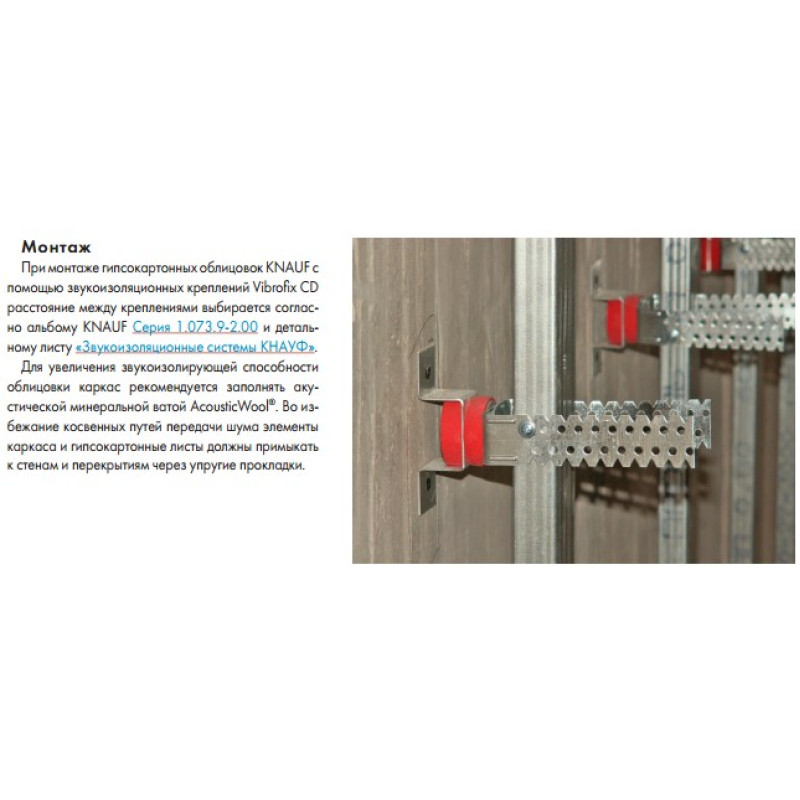

vibration protection. Mount for ease of installation

equipped with a U-shaped bracket made of galvanized

vanized steel 1 mm .

‣ patented fastening system (patent

No. 47822 UA, patent No. 95693 RU)

‣ pre-compression of the elastic element -

145 N

‣ effective acoustic decoupling from building

body structures

‣ increased sound insulation in the low-frequency

range

‣ full compatibility with the profile system

my KNAUF

Height error allowed: up to 5 mm;

Width and depth tolerance: up to 15 mm;
