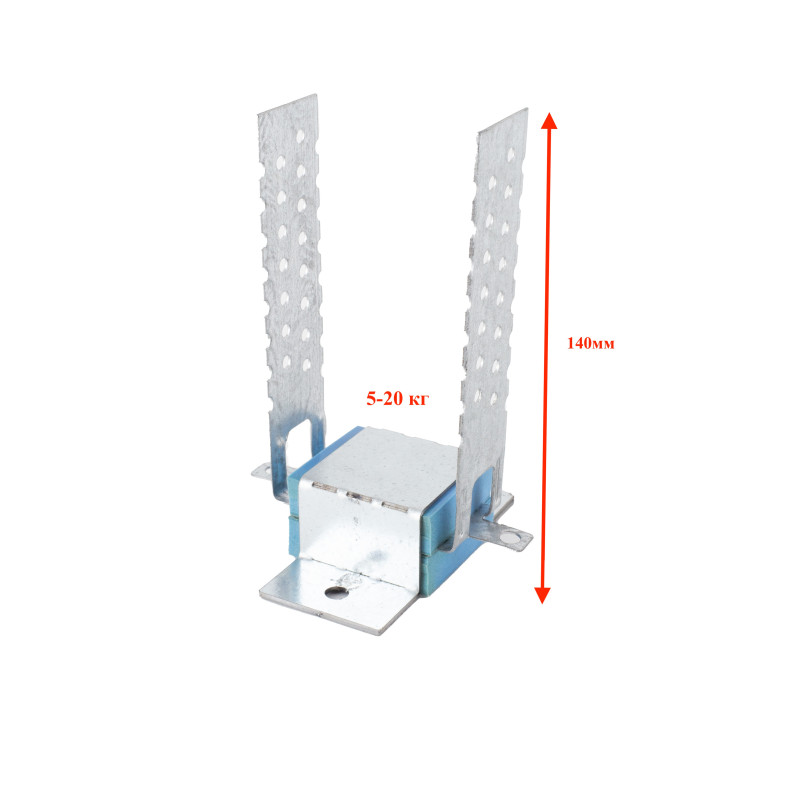

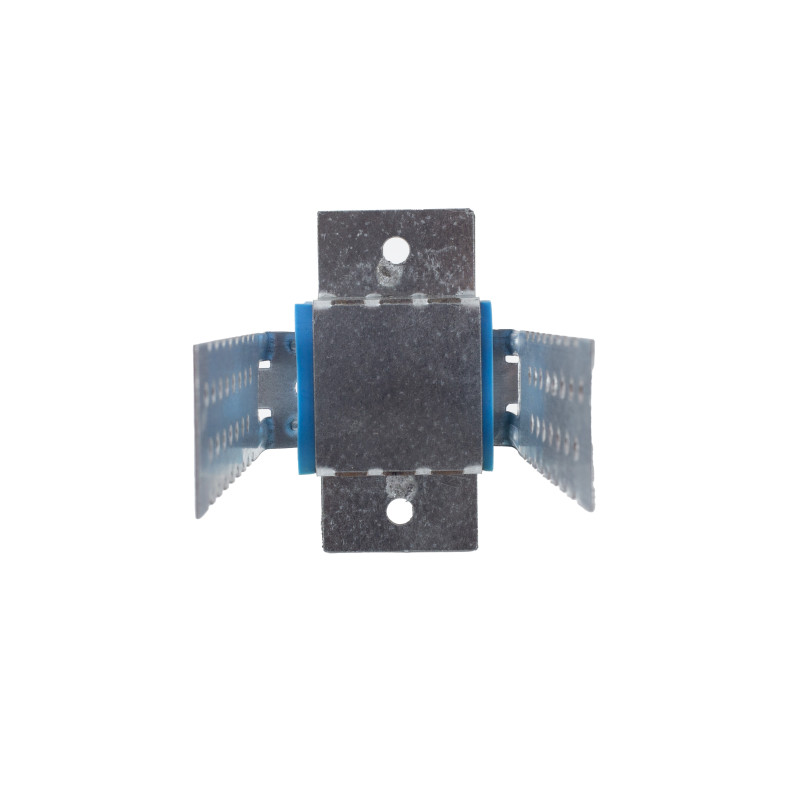

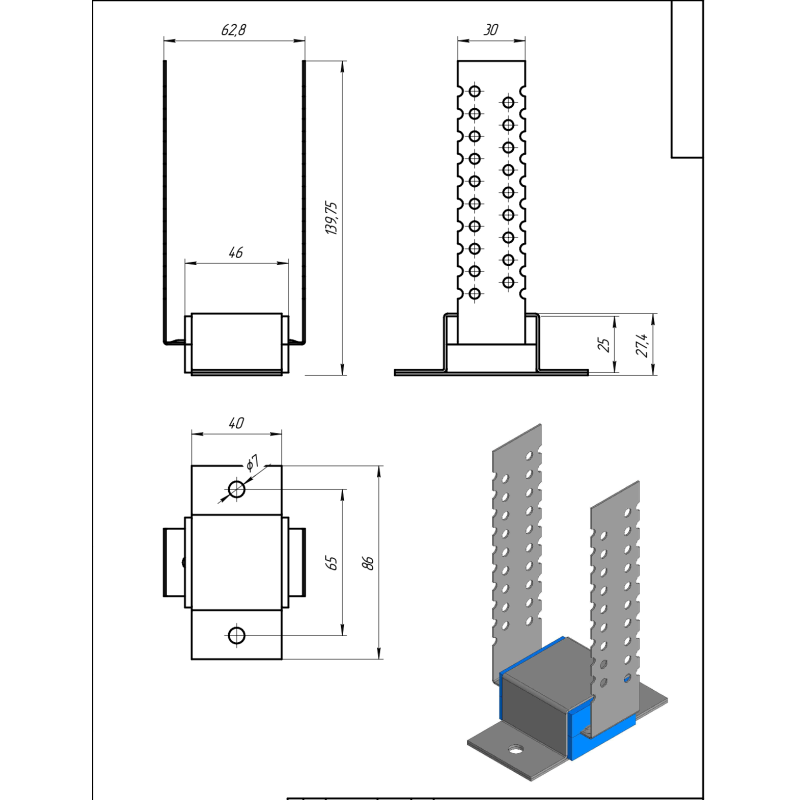

Anti-vibration mounts for soundproofing walls and ceilings VibroNet C2 PRO 86x140mm

VibroNet C2 PRO fasteners are used to install soundproof suspended ceilings in rooms with increased noise protection requirements:

‣ recording studios

‣ cinemas

‣ meeting rooms

‣ ventilation chambers

‣ transformer substations

‣ technical rooms

VibroNet C2 fasteners are made of durable 1.5 mm thick galvanized steel.

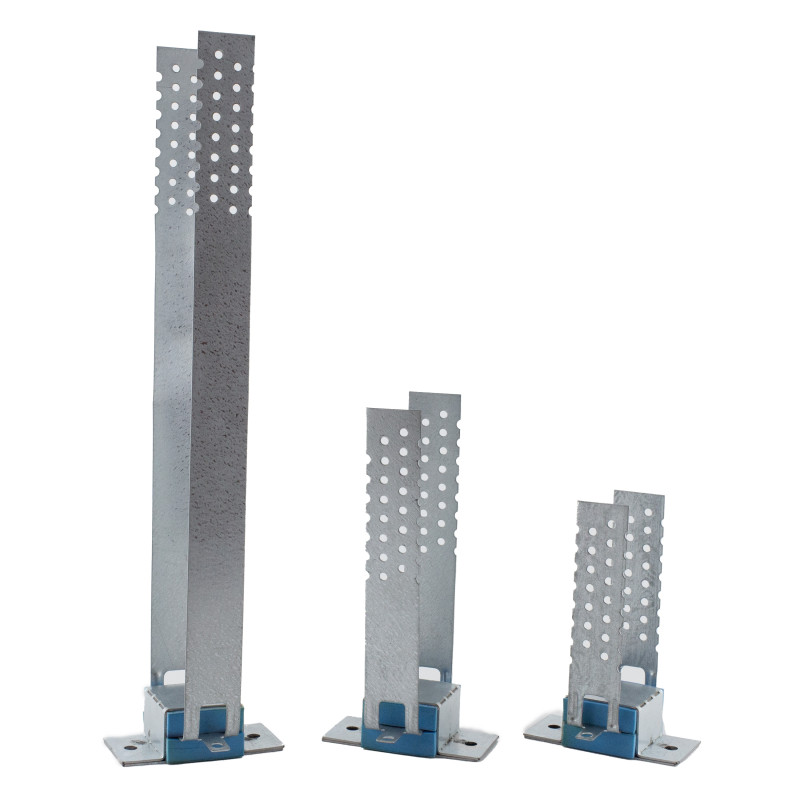

For ease of installation, the fastener is equipped with a U-shaped bracket made of galvanized steel with a thickness of 0.9 mm and a length of 120, 170, 240 and 340 mm.

The main vibration isolation in the form of two elastic plates is performed by the elastomer Vibrofoam

‣ effective acoustic isolation from building structures

‣ increased sound insulation in the low-frequency range

‣ Full compatibility with the KNAUF profile system

‣ Recommended load: 5-20 kg per vibration mount

‣ noise level reduction up to 14 dB.

Product Features:

• Acoustic foam can change color when exposed to ultraviolet rays.
• Delta E acoustic foam color error ≦ 5 in CIELAB color space. The color of the panels may differ slightly when joined.
• The color hue of acoustic foam from different shipments may sometimes vary slightly, without affecting its sound absorbing properties
• Up to 1% of the acoustic foam surface is covered in pores, which are significantly larger than standard pores.
• You can choose to ship the acoustic foam in compressed form, which will reduce the cost of its delivery by about 2/3, however, in order for the foam to return to its original shape, it will take at least 48 hours ( usually) and up to 10 days.
• The safety of using acoustic foam has been confirmed by the conclusion of the sanitary and epidemiological examination.
• Number of holes up to 1%;
• Custom cut material cannot be exchanged or returned;

Height error allowed: up to 5 mm;

Width and depth tolerance: up to 15 mm;

Our company is ready to offer professional and fast installation of equipment with a guarantee for the services rendered.

Additional discount available for bulk orders. To clarify the discount rate, please refer tomanager
